Door Interlock System
Prevents simultaneous opening of airlock and change room doors, protecting cleanroom pressurisation and containment.
A door interlock system is used to prevent the simultaneous opening of airlock and change room doors. It controls and monitors door status such as locked or open according to set system logic, using different types of electro-locks to keep doors secured. The system releases a door only if the other doors in the change room are in a locked condition; simultaneous opening of the doors of the change room is not allowed, to prevent the influx of air from outside or from a less clean area.
Our intelligent door interlock system allows the opening of one door at a time in the airlock or respective change room on request, preventing simultaneous door opening of any other door in that airlock or change room. The system is designed to minimize microbiological and particulate contamination, and helps in the maintenance of airflow and pressurisation in the airlock or change room.

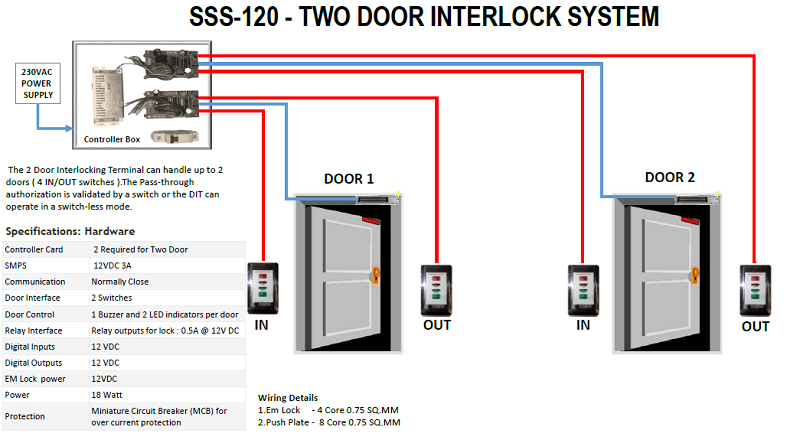

System capabilities
- A fully programmable system can be set up for 2 to 8 doors
- Micro-controller based multi-door controllers
- Panels can be used in connection with each other to set up to 32 doors interlocking
- Seamless integration with access control
- Configurable door interlocking logic matrix
- Multiple options in controller

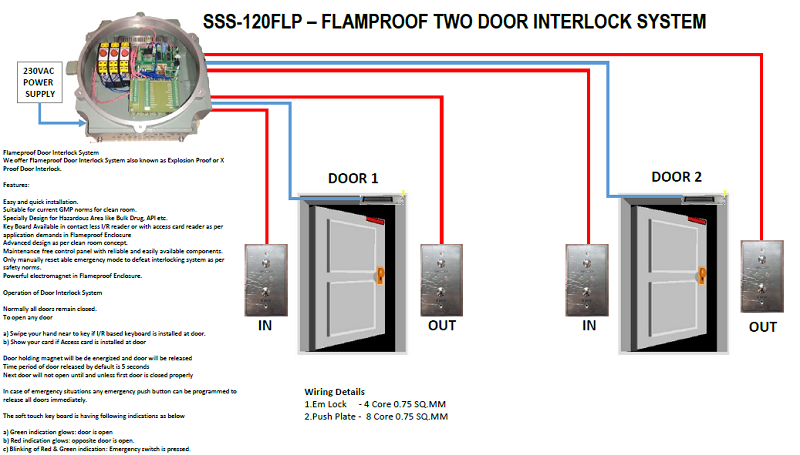

- FLP (flameproof) door interlock system
Controllers

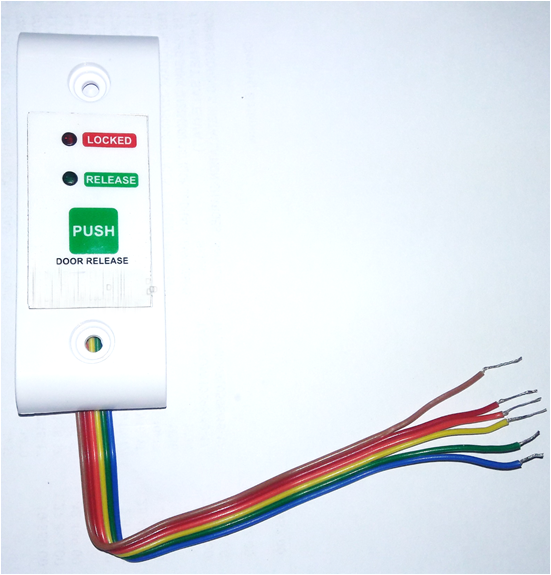

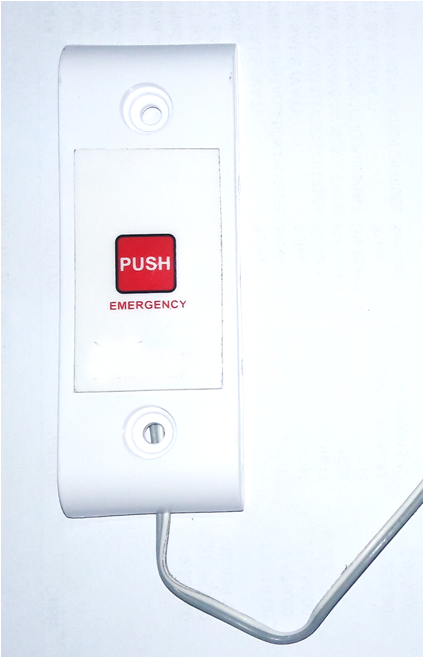

| Model | SSS-03 |
|---|---|
| Max. slave units | 6 Nos |
| Door release output | Yellow wire |
| Ground | Red wire |
| Emergency operation inputs | Orange wire |
| +5 voltage | Black wire |
| Green LED | Blue wire |
| Red LED | Purple wire |
| Dimensions (W x L x D) | 90 x 150 x 20 mm |
| Model | SSS-09 |
|---|---|
| Max. slave units | 6 Nos |
| + for red, green LED and buzzer | Yellow wire |
| + request switch | Blue wire |
| – request switch | Green wire |
| – buzzer | Brown wire |
| – green LED | Red wire |
| – red LED | Orange wire |
| Dimensions (W x L x D) | 39 x 98 x 8 mm |
| Model | SSS-010 |
|---|---|
| Max. slave units | 2 Nos |
| + emergency switch | Grey wire |
| – emergency switch | White wire |
| Dimensions (W x L x D) | 39 x 98 x 8 mm |

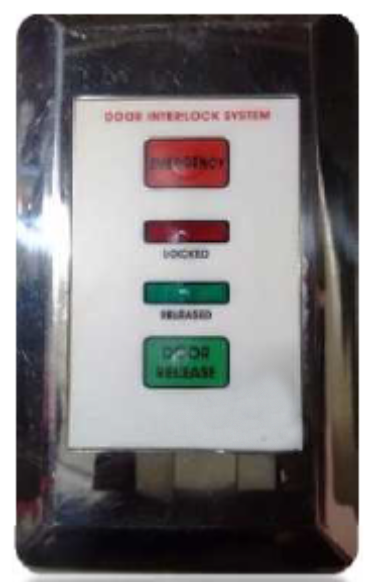

Status indicator plates
| Make | Scheitel |
|---|---|
| Model | SSS-04 |
| SS plate dimension | 172 x 110 x 1.5 mm (H x W x T) |
| Screw to screw distance | 135 mm |

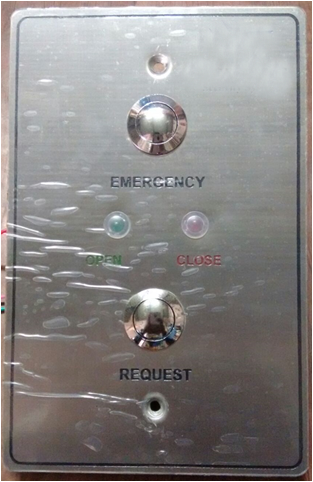

| Request switch | Open operation |
| Emergency switch | Emergency operation |
| Red LED | 5 V DC |
| Green LED | 5 V DC |
| Switch operation type | Momentary (self return) |
| Switch contact | 1 NO (normally open) |
| Operating temperature | 20 °C – 55 °C |
| Protection rating | IP67 / IK08 |
| Max switch rating | 3 A / 24 V DC |
| Body material | Stainless steel (much more resistant to wear and abrasion) |
| Button material | Stainless steel |
| Make | Scheitel |
|---|---|
| Model | SSS-05 |
| SS plate dimension | 169 x 108 x 1 mm (H x W x T) |
| Screw to screw distance | 125 mm |
| Request switch | Open operation |
| Emergency switch | Emergency operation |
| Red LED | 5 V DC |
| Green LED | 5 V DC |
| Switch operation type | Momentary (self return) |
| Switch contact | 1 NO (normally open) |
| Operating temperature | 20 °C – 55 °C |
| Protection rating | IP67 / IK08 |
| Max switch rating | 3 A / 24 V DC |
| Body material | Stainless steel (much more resistant to wear and abrasion) |
| Button material | Stainless steel |
Switches and exit devices

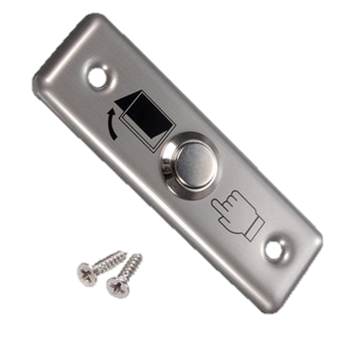

Stainless steel exit switch, small — SSS-07
| Model | SSS-07 |
|---|---|
| Current | 3 A, 36 V DC |
| Material | Stainless steel |
| Item size | 9 x 2.8 cm (L x W) |
- High quality stainless-steel pushbutton, both attractive and vandal resistant
- Fits into a standard single-gang box
- Equipped with 1 N.O. and 1 N.C. (DPST) switch rated 3 A @ 36 V DC
- Vandal-resistant 1" (25 mm) push-button switch
- Activates electric strike, magnetic lock or other electric lock via access control keypad
- Works with most electronic access control keypads and door phones with access control keypads
Stainless steel request switch, small — SSS-08
| Model | SSS-08 |
|---|---|
| Current | 3 A, 36 V DC |
| LED | Multicolour |
| Material | Stainless steel |
| Item size | 9 x 2.8 cm (L x W) |
Stainless steel door release switch, square — SSS-01
| Model | SSS-01 |
|---|---|
| Current | 3 A, 36 V DC |
| Material | Stainless steel |
| Item size | 85 x 85 x 1 mm (L x W x D) |
| Indicators | Green LED 5 V DC for open, red LED 5 V DC for close |

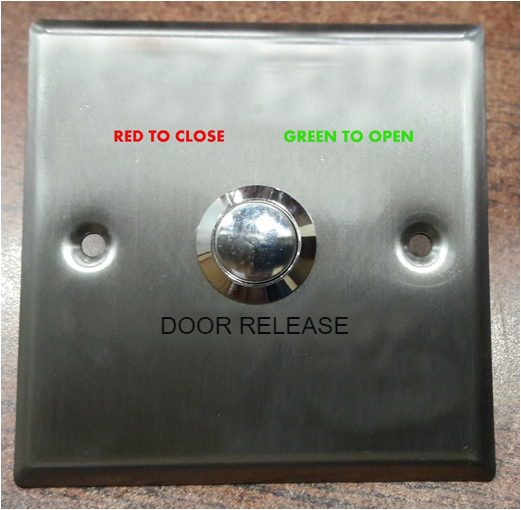

| Marking | "Door Release" silk-screened on plate |
Stainless steel request switch, square — SSS-02
| Model | SSS-02 |
|---|---|
| Current | 3 A, 36 V DC |
| Material | Stainless steel |
| Item size | 85 x 85 x 1 mm (L x W x D) |

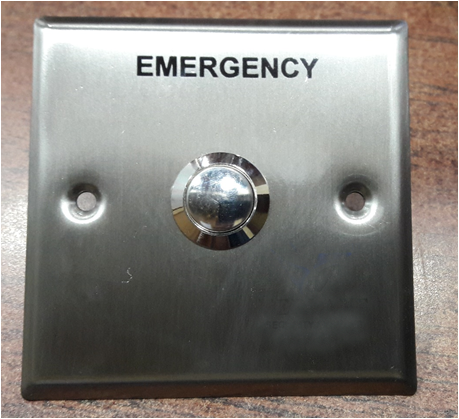

| Marking | "Emergency" silk-screened on plate |

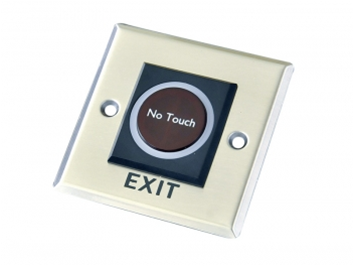

Infrared exit button, no-touch controller — SSS-06
| Make | Scheitel |
|---|---|
| Model | SSS-06 |
| Primary function | Infrared exit button |
| Application | Gate, door, exit and automation control |
| Detection range | 0.1 – 10 cm |
| LED indicators | Standby: blue LED on. Approached (within 10 cm): red LED on |
| Endurance | 500,000 operations |
| Contact rating | AC 120 V, DC 30 V / 3 A |
| Input voltage | DC 12 V |
| Working temperature | −20 °C to 55 °C |
| Material | Durable stainless steel plate |
| Dimensions | 86 x 86 x 29 mm |
| Wiring | Red +12 V DC, black GND, yellow NO, white COM, green NC |
